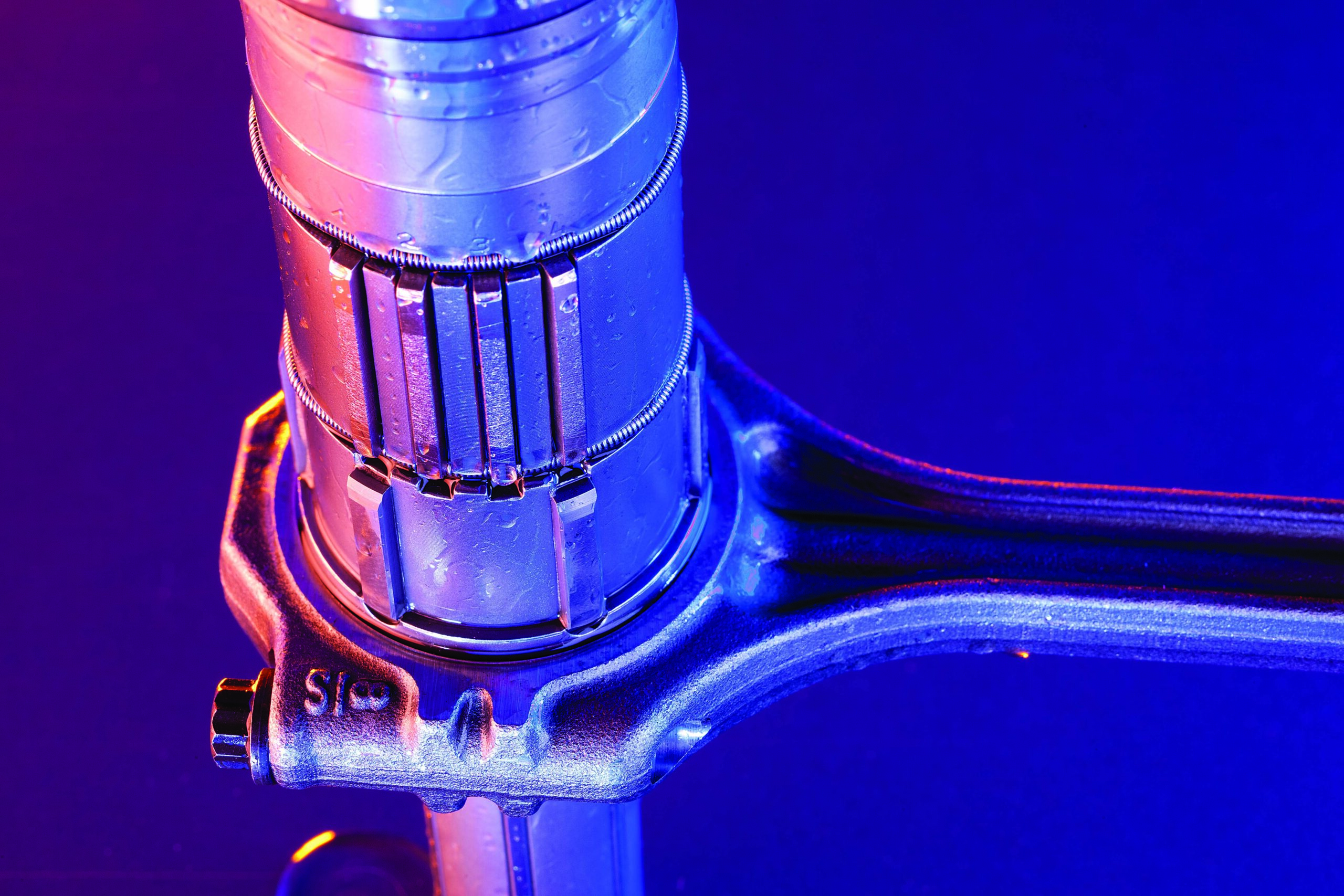

Connecting rod honing tools
Nagel Gear ID (Internal Diameter) honing tools are specialized high-precision manufacturing instruments engineered by Nagel Precision to finish the internal bores of transmission gears, pinion gears, and other rotational parts.
Nagel Gear ID (Internal Diameter) honing tools are specialized high-precision manufacturing instruments engineered by Nagel Precision to finish the internal bores of transmission gears, pinion gears, and other rotational parts. These tooling setups focus on achieving sub-micron geometric accuracy (roundness, cylindricity) and establishing specific plateau surface finishes necessary for hydrodynamic lubrication.
Machine Details
Connecting rod honing tools
Tooling and Technology Types
- Contour Honing Tools: Designed to adapt dynamically to bore shapes, ensuring the correct cylindrical geometry is retained under heavy use.
- Precidor / Single-Pass Tools: High-precision tools built for fast, single-pass sizing directly inside modern machining centers or dedicated transfer lines.
- Reaming / Finishing Tools: Multi-edged cutting tools utilizing diamond or CBN abrasives for extended tool life and superior surface cross-hatch patterns.
Connecting rod honing tool Features
- Abrasive Options: Utilizes high-performance diamond, CBN, and ceramic grit configurations tailored to specific steel and forged rod alloys.
- Expansion Systems: Features precise mechanical or hydraulic tool expansion for automated wear compensation and exact stock removal.
- Integration: Fully compatible with automated part handling, in-process gauging, and servo-driven spindle controls.
