TBT DIES Machines Series
Nagel in collaboration with our wholly owned subsidiary TBT of Germany designs and builds high-quality DIE Machines deep hole drilling machines primarily for smaller diameters.
Nagel in collaboration with our wholly owned subsidiary TBT of Germany designs and builds high-quality DIE Machines deep hole drilling machines primarily for smaller diameters.
TBT DIES Machines Series

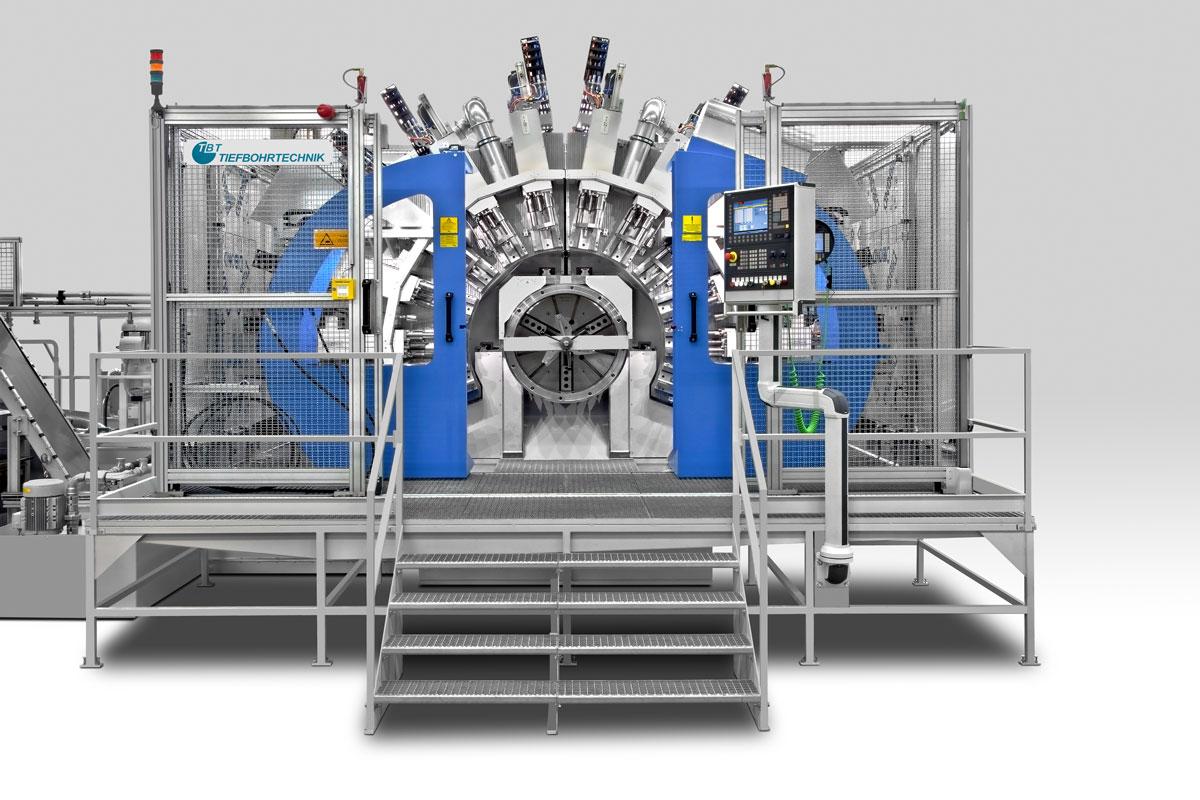

The Nagel-owned TBT Tiefbohrtechnik manufactures specialized multi-spindle deep hole drilling machines (Matrizenmaschinen) designed specifically for high-precision, high-volume hole drilling in industrial pellet dies (matrices) used in animal feed, wood, and biomass recycling production.
Key Features of TBT Die (Matrizen) Drilling Series
- Multi-Spindle Configurations: Built with versatile setups featuring 3, 4, 8, or up to 12 independent spindles to process thousands of tightly spaced holes simultaneously.
- ELB-Drilling Method: Utilizes specialized high-efficiency deep hole drilling processes tailored for thick, rigid, and high-strength alloy ring or flat dies.
- Solid Drilling Diameter Ranges: Accommodates varying hole diameters from solid drilling dimensions of 1.2 mm up to 25 mm depending on the spindle block and application area.
- Customization: Integrates smoothly with customized part handling and advanced CNC controls (Siemens, Fanuc, or Heidenhain).
Available in various technical versions and diverse installation variants.
Die size adjustments according to customer requirement possible after testing.
