B Series Gun Drilling Deep Hole Drilling
Nagel in collaboration with our wholly owned subsidiary TBT of Germany designs and builds high-quality Horizontal large machines B deep hole drilling machines primarily for smaller diameters.
Our B-series concept clearly outperforms all cast-iron designs, and its inclined bed design offers uncomplicated accessibility in addition to a clean oil return – just the way operators need it.
B Series Gun Drilling Deep Hole Drilling

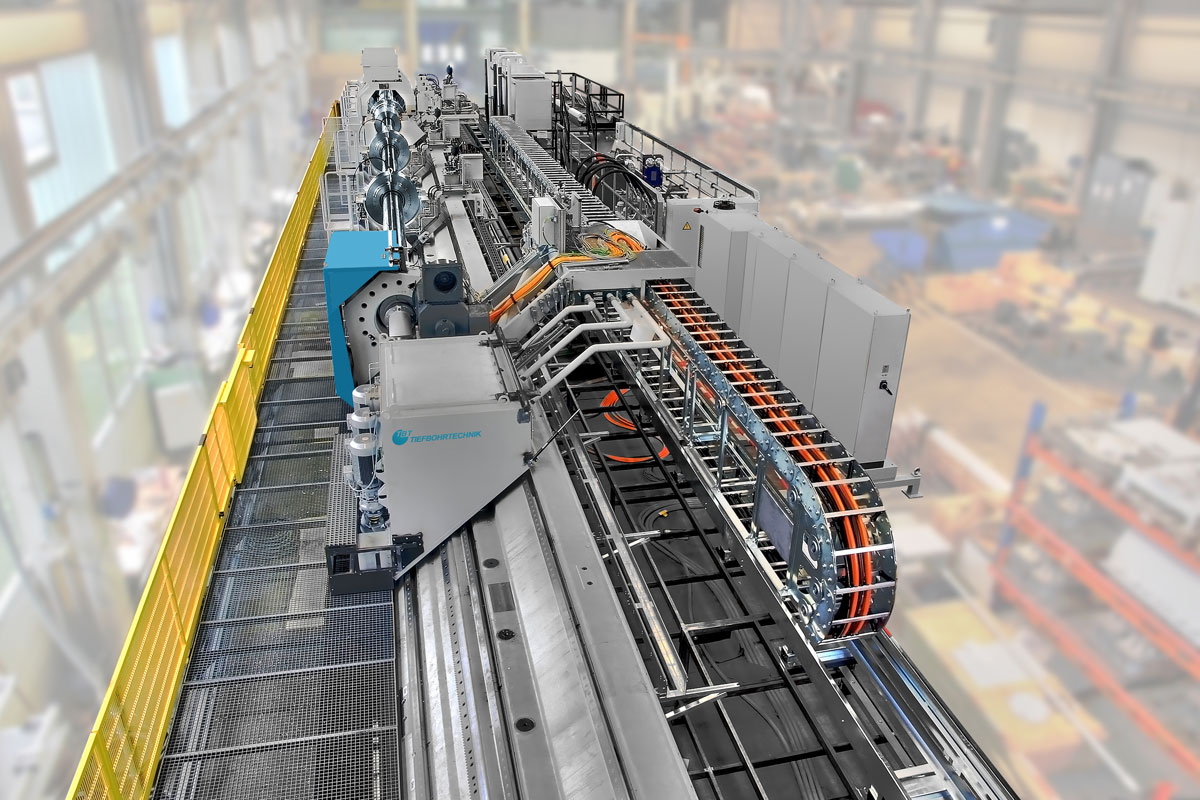

Our precision giants – designed for the latest generation of deep drilling technology. The machine beds made of steel and reinforced concrete offer maximum stability and of course have vibration damping. Our B-series concept clearly outperforms all cast-iron designs, and its inclined bed design offers uncomplicated accessibility in addition to a clean oil return – just the way operators need it.
A spindle in the BTA/STS process perfects solid drilling, boring, skiving and smooth rolling.
Drilling depths from 2000 to 15000 millimetres with maximum precision and a clean oil return.
B-series can also be used with 3-cavity combination tools.
The B Series is a line of heavy-duty horizontal deep hole drilling machines built for large diameters. These systems handle complex processes like solid drilling, counterboring, pull boring (STS method), and roller burnishing for depths ranging from 2,000 mm to 15,000 mm.
B Series Gun Drilling Deep Hole Drilling Features
- Mineral Concrete Bed: The machine bed uses reinforced mineral concrete with a steel casing to maximize vibration damping, extend tool life, and improve bore quality.
- Inclined Bed Layout: An angled design promotes a clean, safe work area and ensures an optimal backflow and return of cooling lubricants.
- Protected Guide Rails: Guidance and linear rails sit safely above the fluid zone to reduce wear and tear from chips and heavy use.
- Large Diameter Processing: Engineered specifically for demanding industrial components requiring deep, straight tolerances.
- Fully independent spindles for multiple spindle machines with multiple HMI’s with the ability to simultaneously run different part types.
- STS / BTA Compatibility: Works seamlessly with heavy single-lip and multi-cavity combination tools configured for high-performance chip removal.
