| Particulars | SPH 150 / SPV 150 | |
| Work Piece | Dia. (mm) | 2 to 250 |
| RPM | 3600 | |
| Servo Drive (HP) | 3 to 5 | |
| Cupwheel | Spindle RPM | 2500 |
| Spindle | Servo Drive (HP) | 1.5 to 3 |
| Feed motor - Servo | 1.5 HP | |
| Number of Spindles | up to 2 | |
| Machine | Dimension H x W x L mm | * |
| # of stations | 1 to 4 | |
| Electricity Requirement | 400/480 V & 50/60 HZ 3 Ph | |
| Air requirement | 61 PSI line pressure | |
| Controls | customer specified | |
| HMI | customer specified | |
| Coolant System | customer specified | |
| Pneumatic System | customer specified | |
| Options | In-Process Gauging | Yes |
| Automatic cup wheel changer | Yes | |
| Broken / low wheel detection | Yes | |
| Rotary table | Yes | |
| Automatic load / unload | Yes | |
| SPC | Yes |

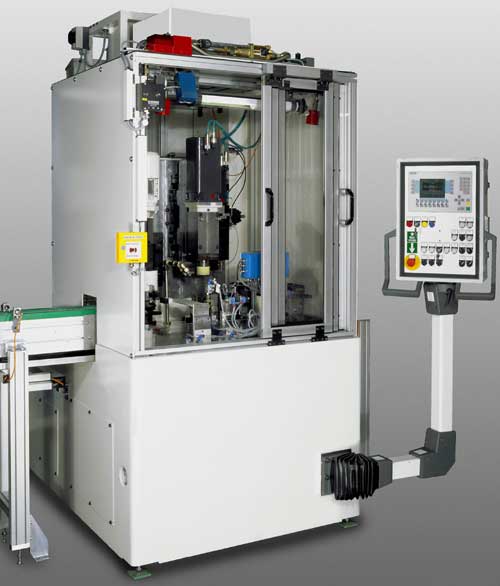

The Nagel Vertical Spindle Machine type SPV 150 and Horizontal Spindle Machine type SPH 150 Cup Wheel Face Finishers are designed to finish flat, concave and convex surfaces. Cup wheel Face Finishers utilize free-cutting cup wheels which conform to the contours of the part. These machine types are capable of removing as little as a few microns of stock to several hundred microns in a short cycle time. This technology is used to finish pinion gears, torque converter plates, spine implants, orthopedic implants, etc.
