| Model | Details | Requirements |
| SG 50 | Pneumatic oscillation 1 stone guide | 60 PSI line pressure |
| SG 75 | Pneumatic oscillation 2 to 3 stone guides | 61 PSI line pressure |
| Tape Attachment | Electro mechanical oscillation 1 head, 50 / 100 mm wide | 400/480 V & 50/60 HZ 3 Ph a/c and 60 PSI line pressure |

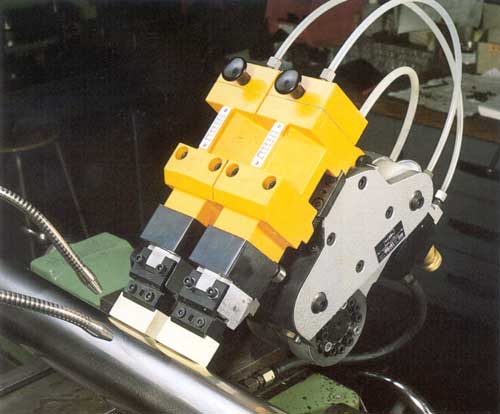

Superfinishing attachments are designed to be mounted on the tool holder of a lathe. In the case of stone attachments, the finishing head is oscillated and fed pneumatically. Electric motors control the oscillation and tape advance in a tape attachment, while the finishing is advanced pneumatically.
An attachment offers the ability to control all the process control parameters available on a standalone machine. Parameters include, head pressure, oscillating frequency, oscillation amplitude and tape advance rate (for tape unit).
These attachments are ideal for finishing very large rollers used in the printing and other web handling applications.
