| Particulars | SCD 80 | SCD 200 | SCE | |
| Work Piece | Dia. Range (mm) | 1.5 - 80 | 1.5 - 200 | 3 min. |
| Feed Rate m/min |
0.25 -10.9 | 0.4 - 20.4 | n/a | |
| Circumferential speed (m/min) | 15 - 400 | 25 - 475 | 15 - 250 | |
| Pneumatic | Frequency (CPM) | 2400 - 2800 | 2400 - 2800 | 2400 - 2800 |
| Oscillation | Amplitude (mm) | 6 max | 6 max | 4 max |
| Additonal stroke (CPM) | 30 - 60 | 30 - 60 | 30 - 60 | |
| # of stations | 1 | 1 | 1 to 3 | |
| Heads (max) | 8 | 10 | * | |
| Machine | Dimension H x W x L mm | 1835 x 1560 x 2160 | 2250 x 1650 x 2120 | * |
| Electricity Requirement | 400/480 V & 50/60 HZ 3 Ph a/c | |||
| Air requirement | 60 psi line pressure |
|||
| Controls | customer specified | |||
| HMI | customer specified | |||
| Coolant System | customer specified | |||
| Hydraulic & Pneumatic System | customer specified | |||
| Options | In-Process Gauging | n/a | n/a | Yes |
| Broken stone detection | Yes | Yes | Yes | |
| Automatic load / unload | Yes | Yes | Yes | |
| SPC | n/a | n/a | Yes | |

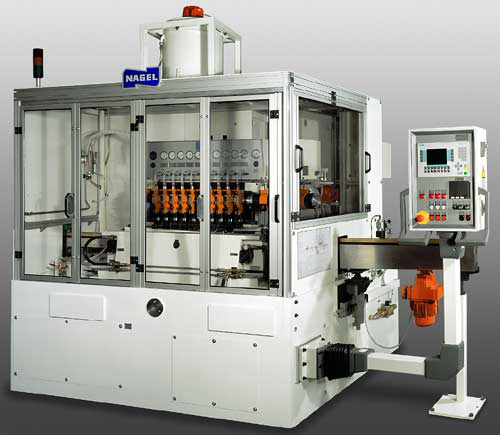

Nagel SCD centerless through feed superfinishers are used for cylindrical round parts such as bearings, shock absorber shafts, piston pin, track pin, etc. The machines can be tied to a centerless through feed grinder or fed via a vibratory bowl feeder. Excellent straightness can be generated by superimposing low frequency, high amplitude mechanical oscillation over the high frequency / low amplitude pneumatic oscillation. The machine can also generate crowns to aid in the assembly of the component.
Nagel SCE superfinishers are used to finish tapered journals and other cylindrical parts that cannot be fed in a through feed machine. Parts can be driven between centers or centerless between rollers.
