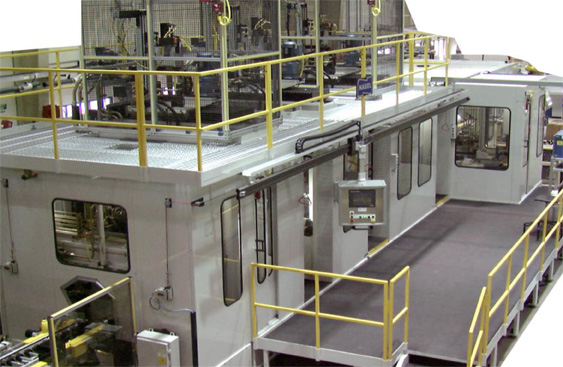

| Particulars | VS 5 | VS 8 | VS 10 | |
Work Piece |
Bore Size |
4 to 60 mm |
10 to 120 mm |
30 to 300 mm |
Max Bore Depth |
Customized per requirement |
|||
Max part height |
Customized per requirement |
|||
Spindle |
Spindle RPM |
350- 1750 |
250 - 1000 |
40 - 300 |
Spindle Drive |
Customized per requirement |
|||
Number of Spindles (X) |
Customized per requirement |
|||
Oscillation |
Spindle Stroke |
300 mm |
500 mm |
1000 mm |
Speed |
30m/min |
30m/min |
25m/min |
|
Spindle Drive (Servo) |
Customized per requirement |
Machine |
Dimension H x W x L mm |
TBD |
Electricity Requirement |
400/480 V & 50/60 HZ 3 Ph a/c |
|||
Air requirement |
60 psi line pressure |
60 psi line pressure |
60 psi line pressure |
|
Controls |
customer specified |
|||
HMI |
customer specified |
|||
Coolant System |
Customized per requirement |
|||
| Hydraulic & Pneumatic System |
Customized per requirement |
|||
Options |
In-Process Gauging |
Yes (bore size dependent) |
Yes (bore size dependent) |
Yes (bore size dependent) |
Post Process Gauging |
Yes |
Yes |
Yes |
|
| Automatic tool wear compensation |
Yes |
Yes |
Yes |
|
Dual Mechanical / Hydraulic expansion |
No |
Yes |
Yes |
|
Automation |
Rotary / line transfer |
Rotary / line transfer |
Line transfer |
|
Automatic load / unload |
Yes |
Yes |
Yes |
|
SPC |
Yes |
Yes |
Yes |
|
Coolant concentration monitor & adjust |
Yes |
Yes |
Yes |
|
