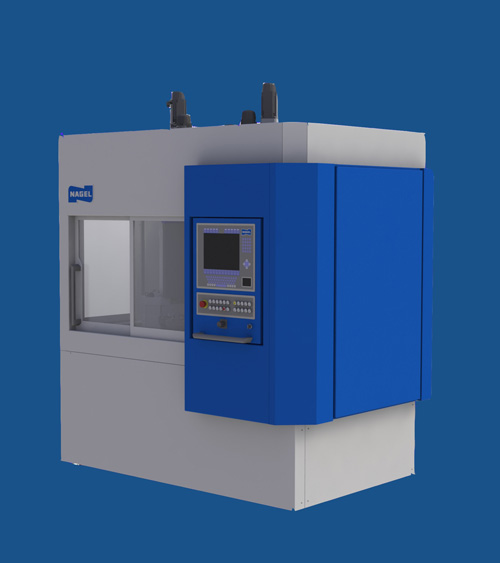

Low/Med Volume Eco Honing Machines: ECO Series 40/80/180
| Particulars | ECO 40 | ECO 80 | ECO 180 | |
| Work Piece | Bore Size | 3 to 40 mm | 10 to 80 mm | 40 to 180 mm |
| Max Bore Depth | 200 | 400 | 600 | |
| Max part height | 300 | 400 | 600 | |
| Spindle | Spindle RPM | 100 - 1700 | 90 -600 | 50 to 500 |
| Spindle Drive (AB) | 4.5 HP | 4.5 HP | 10 HP | |
| Number of Spindles | up to 3 | up to 2 | 1 | |
| Oscillation | Spindle Stroke | 400 mm | 600 mm | 800 mm |
| Speed | 30m/min | 30m/min | 25m/min | |
| Spindle Drive (Servo) | 2.7 HP | 5 HP | 10 HP | |
| Machine | Dimension H x W x L mm | 2750 x 1310 x 1260 | 2750 x 1890 x 1380 | 2750 x 2000 x 1500 |
| Electricity Requirement | 400/480 V & 50/60 HZ 3 Ph a/c | |||
| Air requirement | 60 psi line pressure | |||
| Controls | Allen Bradley PLC | |||
| HMI | Allen Bradley | |||
| Coolant System | Nagel Specifications | |||
| Hydraulic & Pneumatic System | Nagel Specifications | |||
| Options | In-Process Gauging | Yes | Yes | Yes |
| Post Process Gauging | Yes | Yes | Yes | |
| Automatic tool wear compensation | Yes | Yes | Yes | |
| Dual Mechanical / Hydraulic expansion | No | Yes | Yes | |
| Rotary table | Yes | Yes | Yes | |
| Automatic load / unload | Yes | Yes | Yes | |
| SPC | Yes | Yes | Yes | |
